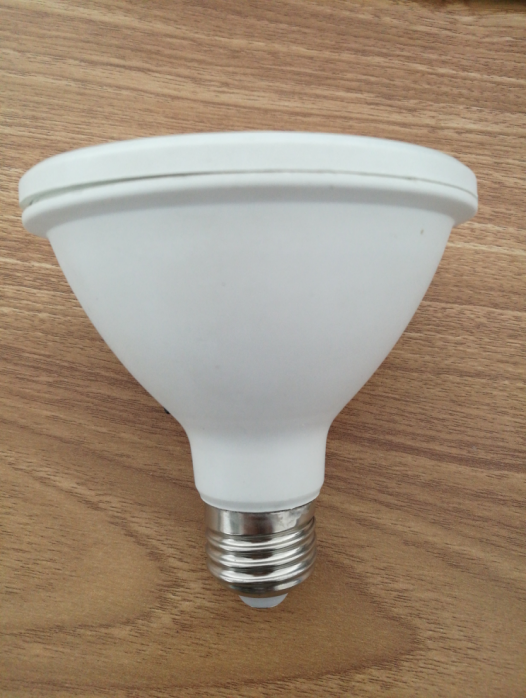

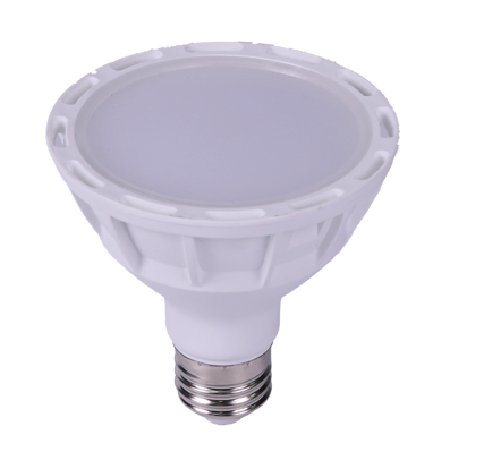

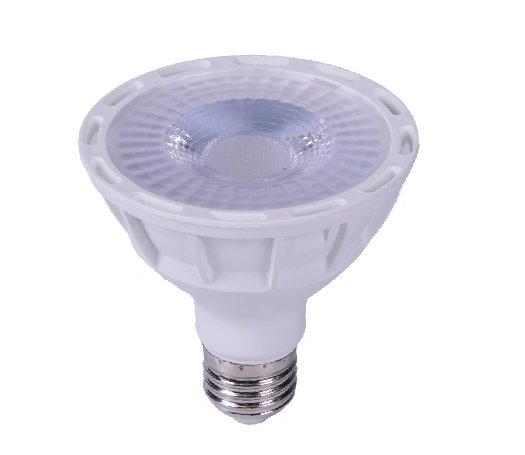

PAR 30
Seiko design, Seiko building, elegant and solemn shape.
Using Cree, Lumileds original LED chip + international well-known brand driving power, long life, low depreciation.
Multi-channel convection heat dissipation technology, high heat dissipation module design, fast and uniform heat dissipation.
Independent electric box and module, drive with waterproof fast interface plug, can be replaced on the spot, convenient maintenance.
The design of patent double lightning protection to ensure the normal use of lamps and lanterns under bad weather conditions.
Elevation adjustable installation design, multi diameter lamp arm installation interface, adapt to various road transformation.
The luminaire has strong illumination, good color display, soft light and good uniformity.
Return
Using Cree, Lumileds original LED chip + international well-known brand driving power, long life, low depreciation.
Multi-channel convection heat dissipation technology, high heat dissipation module design, fast and uniform heat dissipation.
Independent electric box and module, drive with waterproof fast interface plug, can be replaced on the spot, convenient maintenance.
The design of patent double lightning protection to ensure the normal use of lamps and lanterns under bad weather conditions.
Elevation adjustable installation design, multi diameter lamp arm installation interface, adapt to various road transformation.
The luminaire has strong illumination, good color display, soft light and good uniformity.
 | 技术规格书 | Doc.No.： | |||||||||||||||||||
| Par30灯/11W/3000K/E27/100-250V/塑包铝/12SMD/PF0.9/IC/950LM/RA80/过EMC/过巴西认证/LUZ | 编制日期 | 2017-4-1 | |||||||||||||||||||
| JK | 1/2页(Page) | ||||||||||||||||||||
| 成品编码 | 99.205.1.2.102 99.205.1.6.102 | ||||||||||||||||||||
| 1 | 基本规格 General specifications | ||||||||||||||||||||
| 单位 | 指 标 Value | ||||||||||||||||||||
| 1> | 产品类型 Product type | / | Par30-11W | ||||||||||||||||||
| 2> | 发光角度 Beam angle | degree | 38 | ||||||||||||||||||
| 3> | 安全标准 Safety assurance | / | GB 24906 | ||||||||||||||||||
| 4> | 调光非调光 Dimmable or non_dimmable | / | 非调光 | ||||||||||||||||||
| 5> | 灯头材料 Base Material | E27 | / | 铝镀镍 | |||||||||||||||||
| 6> | 泡壳材料 Bubble Material | / | PC+铝 | ||||||||||||||||||
| 2 | 光电参数 Performance Parameters | Unit | 最小Min | 额定Spec | 最大Max | 测试条件(Test Condition) | |||||||||||||||
| 1> | 电源电压 Supply Voltage | Vrms | 100 | 220 | 250 | 额定电压下，25±2℃，灯头向上，点亮1小时稳定后测试 rated voltage,25±2℃, Base Up test after 0.5 hours light-on and stable (灯珠焊盘温度是96.1度）1000H<15%光蓑 | |||||||||||||||
| 2> | 电源频率 Input Frequency | Hz | 50 | 50 | 50 | ||||||||||||||||
| 3> | 输入电流 Input Current | Arms | 0.044 | 0.054 | 0.088 | ||||||||||||||||
| 4> | 输入功率 Input Power | W | 9.9 | 11 | 12.100 | ||||||||||||||||
| 5> | 功率因数 Power Factor | λ | >0.7 | >0.7 | / | ||||||||||||||||
| 6> | 工作频率 Ballast Operation Frequency | kHz | 65kHz-80kHz | ||||||||||||||||||
| 7> | 光通量 luminous Flux | 2700K | lm | / | / | / | |||||||||||||||
| 3000K | lm | 855 | 950 | / | |||||||||||||||||
| 4000k | lm | 900 | 1000 | / | |||||||||||||||||
| 6500k | lm | 900 | 1000 | / | |||||||||||||||||
| 8> | 显色指数 Colour rendering index | Ra | ＞80 | / | / | ||||||||||||||||
| 9> | 平均寿命 Lifetime ( 70% failure ) | hrs | 15000 | / | / | ||||||||||||||||
| 10> | 电磁兼容 | EMC | ok | ||||||||||||||||||
| 3 | 产品外形尺寸 Product figure and dimension | 单位 | 指 标 Value | ||||||||||||||||||
| Unit | 最小Min | 额定Spec | 最大Max | 备注 | |||||||||||||||||
| 1> | 灯总长Overall Lamp Length(A) | E27 Base | mm | 94.6 | 95 | 95.4 | |||||||||||||||
| 2> | 灯总宽Overall Lamp Wide(B) | / | mm | 94.8 | 95 | 95.2 | |||||||||||||||
| 3> | 泡壳外径 Overall Housing Diameter(C) | mm | 94.8 | 95 | 95.2 | ||||||||||||||||
 | |||||||||||||||||||||
| 版本号 | 修改日期 | 修改理由 | 设计 | 审核 | 会签 | 审批 | |||||||||||||||
| 1.0 | 2017-4-1 | 初版 | |||||||||||||||||||
