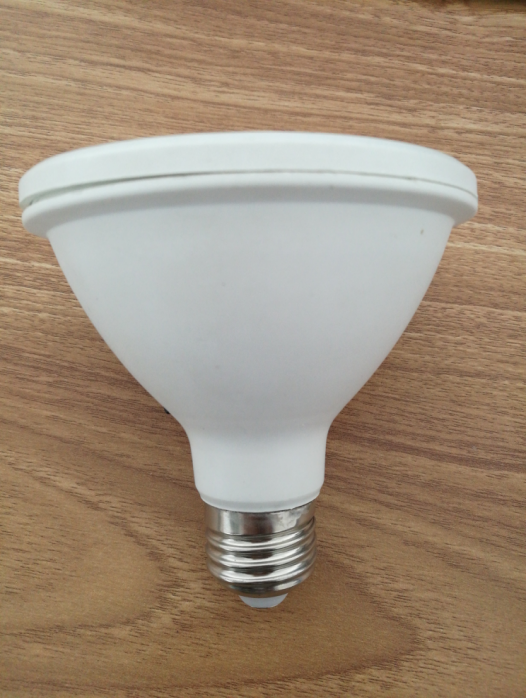

PAR38
Seiko design, fine workmanship, elegant and dignified.
Using Cree, Lumileds original factory LED chip + international famous brand drive power supply, long life, low light decline.
Multi-channel convection heat dissipation technology, high heat dissipation module design, heat dissipation fast and even.
Independent electric box and module, the driver adopts waterproof and fast interface plug, can be replaced on site, easy to maintain.
Patented double lightning protection design to ensure the normal use of lamps in inclement weather conditions.
Elevation adjustable installation design, multi-diameter lamp arm installation interface, adapted to various road modifications.
Return
Using Cree, Lumileds original factory LED chip + international famous brand drive power supply, long life, low light decline.
Multi-channel convection heat dissipation technology, high heat dissipation module design, heat dissipation fast and even.
Independent electric box and module, the driver adopts waterproof and fast interface plug, can be replaced on site, easy to maintain.
Patented double lightning protection design to ensure the normal use of lamps in inclement weather conditions.
Elevation adjustable installation design, multi-diameter lamp arm installation interface, adapted to various road modifications.
 | 技术规格书 | Doc.No.： | |||||||||||||||||||
| Par38灯/11W/3000K/E27/100-250V/塑包铝/12SMD/PF0.9/IC/950LM/RA80/过EMC/过巴西认证/LUZ | 编制日期 | 2017-4-1 | |||||||||||||||||||
| JK | 1/2页(Page) | ||||||||||||||||||||
| 成品编码 | 99.205.1.2.102 99.205.1.6.102 | ||||||||||||||||||||
| 1 | 基本规格 General specifications | ||||||||||||||||||||
| 单位 | 指 标 Value | ||||||||||||||||||||
| 1> | 产品类型 Product type | / | Par38-15W | ||||||||||||||||||
| 2> | 发光角度 Beam angle | degree | 38 | ||||||||||||||||||
| 3> | 安全标准 Safety assurance | / | GB 24906 | ||||||||||||||||||
| 4> | 调光非调光 Dimmable or non_dimmable | / | 非调光 | ||||||||||||||||||
| 5> | 灯头材料 Base Material | E27 | / | 铝镀镍 | |||||||||||||||||
| 6> | 泡壳材料 Bubble Material | / | PC+铝 | ||||||||||||||||||
| 2 | 光电参数 Performance Parameters | Unit | 最小Min | 额定Spec | 最大Max | 测试条件(Test Condition) | |||||||||||||||
| 1> | 电源电压 Supply Voltage | Vrms | 100 | 220 | 250 | 额定电压下，25±2℃，灯头向上，点亮1小时稳定后测试 rated voltage,25±2℃, Base Up test after 0.5 hours light-on and stable (灯珠焊盘温度是96.1度）1000H<15%光蓑 | |||||||||||||||
| 2> | 电源频率 Input Frequency | Hz | 50 | 50 | 50 | ||||||||||||||||
| 3> | 输入电流 Input Current | Arms | 0.044 | 0.054 | 0.088 | ||||||||||||||||
| 4> | 输入功率 Input Power | W | 9.9 | 11 | 12.100 | ||||||||||||||||
| 5> | 功率因数 Power Factor | λ | >0.7 | >0.7 | / | ||||||||||||||||
| 6> | 工作频率 Ballast Operation Frequency | kHz | 65kHz-80kHz | ||||||||||||||||||
| 7> | 光通量 luminous Flux | 2700K | lm | / | / | / | |||||||||||||||
| 3000K | lm | 855 | 950 | / | |||||||||||||||||
| 4000k | lm | 900 | 1000 | / | |||||||||||||||||
| 6500k | lm | 900 | 1000 | / | |||||||||||||||||
| 8> | 显色指数 Colour rendering index | Ra | ＞80 | / | / | ||||||||||||||||
| 9> | 平均寿命 Lifetime ( 70% failure ) | hrs | 15000 | / | / | ||||||||||||||||
| 10> | 电磁兼容 | EMC | ok | ||||||||||||||||||
| 3 | 产品外形尺寸 Product figure and dimension | 单位 | 指 标 Value | ||||||||||||||||||
| Unit | 最小Min | 额定Spec | 最大Max | 备注 | |||||||||||||||||
| 1> | 灯总长Overall Lamp Length(A) | E27 Base | mm | 94.6 | 95 | 95.4 | |||||||||||||||
| 2> | 灯总宽Overall Lamp Wide(B) | / | mm | 94.8 | 95 | 95.2 | |||||||||||||||
| 3> | 泡壳外径 Overall Housing Diameter(C) | mm | 94.8 | 95 | 95.2 | ||||||||||||||||
 | |||||||||||||||||||||
| 版本号 | 修改日期 | 修改理由 | 设计 | 审核 | 会签 | 审批 | |||||||||||||||
| 1.0 | 2017-4-1 | 初版 | |||||||||||||||||||
